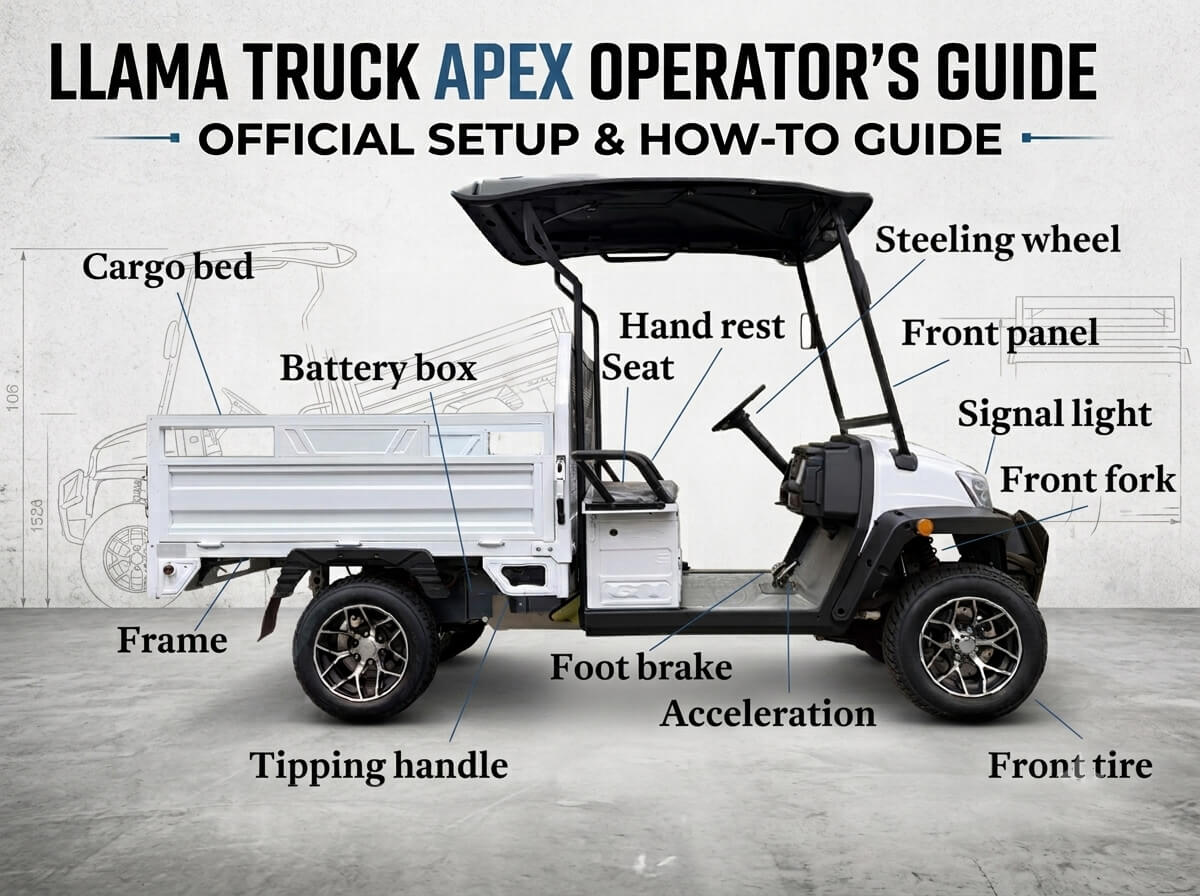

LLAMA Truck Apex Operator's Manual: Step-by-Step Setup & How-to Guide

While a standard llama truck apex review focuses heavily on performance testing, owning this machine requires a clear understanding of its physical controls and mechanical systems.

This comprehensive LLAMA Apex setup guide serves as your official step-by-step tutorial for operating the LLAMA Truck Apex. Designed to replace high-maintenance fuel utility vehicles, this Apex electric UTV combines modern touchscreen electronics with heavy-duty mechanical linkages.

Below is the complete operator's handbook, derived directly from official factory specifications and mechanical schematics.

Key Operational Specifications

Before turning the key, memorize the physical limits and dimensional specifications of the vehicle:

1. Pre-Ride Safety & Mechanical Checklist

Do this quick diagnostic test before each use of the vehicle to verify it is safe to drive:

a. Fastener Check: Hold the steering wheel and try to push, pull and twist the steering column. Tighten all fasteners, nuts and bolts on chassis and cargo box.

b. Drivetrain inspection: Ensure the gearbox, rear axle, differential and suspension components are clean, properly lubricated and free of physical damage.

c. Tire & Alignment Check: Make sure all four wheels are able to spin freely without wobbling. Use a tire pressure gauge to ensure pressure is between 40-65 PSI.

d. Brake Test: Press foot brake pedal firmly. The pedal should be firm and responsive with a minimum amount of travel.

e. Electrical Status: Check that battery is fully charged, physical terminals are dry and free from corrosion and main battery air switch (circuit breaker) is in "ON" position.

2. Cockpit Operations & Electronics

The main console of the Apex electric UTV consolidates your primary driving controls, telemetry, and safety systems.

A. Powering On the System

● Insert the physical key into the ignition switch below the dashboard and rotate it clockwise.

● This action initializes the 8-inch TFT touch screen and speedometer.

● The display will showcase active system voltage, battery capacity percentage, odometer mileage, trip metrics, and active gear selections.

B. Shifting Gears (Rotary Dial)

To the right of the display is a tactile, blue-illuminated rotary gear selector dial.

● N (Neutral): Always keep the vehicle in Neutral when stationary, charging, or operating the cargo dump bed.

● D (Drive): Rotates the dial clockwise to engage the forward drive gear.

● R (Reverse): Rotates the dial counter-clockwise to back up. Shifting into Reverse automatically overrides the TFT screen to display a live, wide-angle rear camera feed with parking assistance grids.

C. Lighting & Signaling Stalk

A multi-function steering column stalk manages all safety lights:

● Headlights & Spotlights: Rotate the outer dial of the stalk forward to switch between low beams, high beams, and off.

● Horn: Press the physical button at the tip of the stalk to sound the warning horn.

● Turn Signals: Move the stalk up or down to signal turns. The vehicle features synchronized front LED indicators, rear arrow tail lights, and red flashing chevron arrows embedded directly inside the side mirror glass.

● Hazard Lights: Press the large red triangle rocker button on the dashboard console to engage all hazard lights.

3. Wireless CarPlay & Android Auto Setup Guide

Connecting your smartphone to the 8-inch touchscreen takes about one minute during your initial setup. Once paired, your phone will connect automatically every time you power on the truck with Bluetooth enabled.

Before You Start

Make sure your LLAMA Truck Apex is powered on with the main display screen awake, and keep your iPhone (for Wireless CarPlay) or Android phone (for Wireless Android Auto) in the cab with you.

Step-by-Step Phone Pairing Instructions

1. Open the settings menu on your smartphone and turn on Bluetooth. On an iPhone, go to Settings and tap Bluetooth. On an Android device, go to Settings, tap Connected devices, and select Bluetooth.
2. Turn on wireless projection on the truck display. On the Apex home screen, tap the gear icon in the bottom-right corner to open the Settings menu. Tap the General tab on the left side of the screen and make sure the right option is switched to On (turn on Wireless Carplay for an iPhone, or Wireless Android Auto for an Android phone).
3. Look back at your phone's Bluetooth settings screen and wait a few seconds for nearby devices to load. Your truck will show up in the device list (under Other Devices on an iPhone) with a unique Bluetooth name starting with CAR_BT, such as CAR_BT_1593CB. Tap your truck's name when it appears.
4. A Pairing Request window will pop up on your phone screen displaying a six-digit code. You do not need to type this code anywhere. Simply tap Pair to confirm.
5. Your phone will ask if you want to allow contacts and favorites sync. Tap Allow so caller names, favorites, and recent calls appear on the truck screen for hands-free calling. Even if you choose Don't Allow, navigation and media projection will still work normally.
6. Your truck will now appear as Connected under My Devices on your phone, and Apple CarPlay or Android Auto will launch directly on the Apex touchscreen.

Quick Troubleshooting Tips for Phone Projection

Do not get fooled by false alerts. Your phone may briefly show a notification saying "accessory not supported" during the initial handshake. This is a harmless false alarm. Just check Settings, then Bluetooth, and look under My Devices on your phone. If your CAR_BT truck entry shows as Connected, your setup is good to go.

If your truck does not show up under Other Devices on your phone, toggle your phone's Bluetooth off and back on, then double-check that Wireless Carplay or Wireless Android Auto is switched to On inside the truck's Settings and General screen.

4. Speed, Torque, & Drivetrain Controls

To extract true 4-wheel electric farm truck performance, you must learn how to combine electronic speed modes with your mechanical gearbox.

A. Selecting Speed Modes (Electronic)

The vehicle features a three-speed software gear system that adjusts the throttle sensitivity and limits top speeds:

● Low Speed (10-20 km/h): Ideal for barns, narrow roads or busy properties.

● Regular Speed (20-30 km/h): Intended for use in a regular environment on flat terrain.

● High speed (30 – 40 km/h / ~25 – 32 mph): For use on open roads and long straightaways.

B. Operating the Mechanical High/Low Gearbox

Between the seats is a heavy-duty mechanical lever connected directly to the transmission via a physical linkage system.

● High Gear (H): Push the lever completely forward. Use this setting for standard trail cruising and to achieve the maximum 32 mph speed.

● Low Gear (L): Pull the lever completely backward. This mechanically multiplies the torque output of the 3000W motor. Use this gear for dragging heavy trailers, climbing steep muddy hills, or navigating loose gravel and ruts.

● Operational Rule: Always shift and fully engage the mechanical gear lever prior to starting your drive or climbing a hill. Never shift gears while moving.

C. Mastering the Braking System & Handbrake

● Braking: Use even pressure on the foot brake pedal to engage the 4-wheel hydraulic disc brakes. Decelerate gradually to maintain stability and prevent skidding.

● Parking Safety: When stopping, especially on an incline, pull the central mechanical handbrake lever firmly upward until it clicks and locks. To release, press the chrome button at the tip of the handle and push the lever completely flat. Never rely solely on leaving the electric motor "in gear" to hold the vehicle on a hill.

5. Loading & Operating the Hydraulic Dump Bed

The Apex features a power-operated hydraulic lift bed designed to make unloading materials completely effortless.

Step-by-Step Dumping Guide:

a. Bring the vehicle to a complete stop on flat, stable ground.

b. Shift the rotary dial to N (Neutral) and firmly engage the mechanical handbrake. Keep the vehicle turned "ON".

c. Walk to the rear of the vehicle and release the dual mechanical latch hooks securing the tailgate.

d. Return to the cockpit and locate the red rocker switch below the gear selector.

e. Press and hold the Up Arrow to engage the electric hydraulic pump. The central hydraulic rod will extend, tilting the steel bed upward to dump your cargo.

f. Once fully emptied, press and hold the Down Arrow to lower the bed smoothly back down until it locks flat against the chassis frame.

g. Close the tailgate and secure the mechanical latch hooks before driving.

6. Battery Maintenance & Charging Guidelines

By taking proper care of your 72V lithium battery pack, you will ensure that it performs at its best and that you are not prematurely aging your battery pack.

● Charging Environment: Do not charge the battery in outdoor, damp, or exposed areas, or in direct sunlight, in the presence of flammable materials.

● Charging Protocol:

1. Attach the original charger to the charging port on the vehicle.

2. Connect the charger to an AC power outlet.

3. The average charge time is 8-12 hours. Do not exceed recommended charging times.

4. Disconnect the charger from the electrical outlet first, then the charger from the vehicle.

● Storage Care: For vehicles not to be driven for more than 3 months, store the battery in a cool and dry environment (approx. 23°C / 73°F). Store it at 60% to 80% charge and recharge the cells every 3 months to prevent cell damage.

7. Checking & Managing Battery Status on Your Smartphone (BMS Mobile App Guide)

Beyond the dashboard gauge, your LLAMA Truck Apex features a smart Bluetooth Battery Management System (BMS). You can connect your smartphone directly to the 72V lithium battery pack to inspect real-time cell voltages, internal temperatures, charging wattage, and safety switches right from your hand.

Step 1: Downloading and Setting Up the JBD BMS App

1. Scan the official JBD BMS QR code using your phone camera to open the download link. If you scan the code inside a messaging app, tap the three dots in the upper-right corner and select Open in Browser, then tap the download button (or download the JBD BMS app directly through Google Play or the Apple App Store).
2. Open the app once installation finishes. You can switch the interface language to English using the language icon at the top-right corner of the screen.
3. Log in with an existing account, register a new account using your phone number and verification code, or select Guest Mode at the bottom to jump straight into local Bluetooth monitoring.

Step 2: Connecting to Your Truck's Battery Pack

1. Turn on your phone's Bluetooth and stand near the truck with the main battery breaker switched ON.
2. On the app's Home screen, tap the blue circular Scan button at the bottom center of the screen to open the camera scanner.
3. Point your camera directly at the QR code label on the black metal casing of the Apex battery pack. If the battery bay is dark, tap the flashlight icon on the screen to light up the sticker. (Alternatively, you can tap the Bluetooth search icon in the top-right corner of the Home screen to open the Device List, wait a few seconds for your battery ID such as DH24SA01L24S100A to appear, and tap Connect.)
4. The first time you pair with the battery, a window will pop up asking "Whether to activate the device?" (or you can tap the Activate button in the top-right corner). Tap Confirm, and you will see an "Activate the device successfully" message as live battery data loads onto your screen.

Step 3: Reading the Real-Time Battery Dashboard

Once connected, the Real-Time tab (bottom-left icon) gives you a complete diagnostic view of your 72V lithium pack:

• A large circular gauge at the top left displays your exact Remaining Power percentage (State of Charge, or SOC).
• Next to the main gauge, the app lists your battery chemistry (BattType: LFP for Lithium Iron Phosphate) and HeatState (showing ON or OFF so you know if the internal cold-weather heater is warming the cells).
• Directly below the gauge, you can check the live status of the charging switch (ChgMos: ON/OFF), the discharging switch (DisMos: ON/OFF), active cell balancing status (BalState: ON/OFF), and balancing current (BalCurrent).
• The main telemetry grid displays eight live readings: Total Volt (overall pack voltage, such as 79.43V), Current (live amps flowing in or out), Power (real-time wattage), Cycles (total charge cycles completed), High Volt (highest individual cell voltage), Low Volt (lowest individual cell voltage), Ave Volt (average cell voltage), and Diff Volt (the voltage spread between your highest and lowest cells, such as 0.013V).
• Scrolling further down the Real-Time page shows the overall Battery Status (Normal or active fault alerts), internal temperature sensor readings (MOS, T1, and T2 temperatures), and the individual voltage of all 24 cell groups wired in series. If you see a small "B" icon next to any cell number, the BMS is actively balancing that specific cell.

Step 4: Using the Parameters Tab & Setting a Security Password

Tap the Parameters gear icon at the bottom center of the app to access basic management controls:

• Inside the Quick menu, you can customize the Bluetooth name of your battery pack and manually toggle the charging switch (ChgMos) or discharging switch (DisMos) on or off. Toggling either switch displays "Set successfully", and turning a switch off here will immediately pause charging or power output until you switch it back on.
• Tap About Battery on the left menu to inspect factory hardware details, including the manufacturer code, production date, BMS model number, firmware version, and serial number.
• Tap Password on the left menu (or tap the orange "Set a unique battery connection password to prevent unauthorized access" banner on the Real-Time screen) to lock your BMS with a personal password. Setting a password ensures nobody else can connect to your UTV battery via Bluetooth and turn off your power switches while the truck is parked.
• Leave factory protection voltages, current thresholds, temperature limits, and capacity calibration settings untouched. Your Apex BMS is pre-programmed at the factory for 72V LiFePO4 operation, and altering advanced protection values can trigger fault lockouts or damage the pack.

8. FAQs

1. What is the maximum mass that LLAMA Truck Apex can load?

The official payload capacity of the Apex is 2,200 lbs (1,000 kg). Make sure cargo weight is distributed evenly in the cargo bed. Cabin accommodations are designed for one operator, up to 500 lbs.

2. Why does the car start, but not give any power when I press the foot on the brake?

Inspect foot and hand brake levers. The power is automatically cut off when the car is stopped. Also check that the main battery air switch (circuit breaker) in the area of the battery box is switched ON.

3. Can I drive the Apex electric UTV off-road or on steep hills?

Yes, but there are some precautions. To prevent damage to the electrical components, and maximize motor torque when going uphill, always engage the mechanical range lever to the Low gear (L) position when attempting steep inclines. Do not make sharp turns at speeds over 10 km per hour as this can cause tipping.

4. What are the precautions and best practices for safely washing and cleaning the LLAMA Truck Apex without harming any electrical components?

Never clean while the vehicle is running. Beware of high-pressure water or pressure washers from directly facing the motor, controller, battery, wire connectors or display electronics. Water has a tendency to get into unsealed electronics and bearings under pressure and cause major damage. Instead, use a soft cloth and mild detergent to clean the painted panels and plastics and make sure the battery area and all electrical connectors are thoroughly dry before reconnecting or turning on the vehicle.

5. What to do if the car stalls out during driving?

First, stop the car safely and switch off the actual ignition. Look for the following three common failure points:

● Tighten Loose Connections: Check the battery compartment for tightness and correct connections of all terminal cables.

● Tripped Breaker: Reset the main air switch (circuit breaker) or replace the fuses, located near the battery box, with the same size fuse if the breaker tripped due to an overload.

● Overheating Protection: This is because the controller's overheating protection may have come on board when you were towing something heavy up a hill. Let the controller cool down thoroughly before re-starting, and put it in Low Gear (L) to prevent continuous heavy load strain.
